SimuScene: Simulation-Ready Compositional
3D Scene Reconstruction from a Single Image
Reconstructing interactive, simulation-ready 3D scenes from a single image is a critical bottleneck for robotic manipulation. While recent single-image lifters recover plausible per-object shapes, composing them yields scenes that collapse under physical simulation due to interpenetrating, hovering, or sinking objects. Existing physics-aware methods address this strictly as a post-hoc layout correction, leaving the underlying geometric errors unresolved. To address this, we introduce SimuScene, a compositional 3D reconstruction pipeline that puts physics in the loop of shape and layout estimation. Rather than using physics merely for layout cleanup, we utilize the physics engine as a diagnostic measurement tool during the generative process itself. By diagnostically simulating reconstructed objects under gravity, we convert penetration and support failures into quantitative correction signals that drive gravity-axis stretching and amodal shape resampling. This physics-informed feedback loop mitigates accumulated reconstruction errors and produces a stable, simulation-ready compositional 3D scene. Extensive experiments demonstrate state-of-the-art performance on physical stability and geometric alignment benchmarks. We further highlight SimuScene's utility by deploying reconstructed environments in humanoid control and robot-arm manipulation tasks.

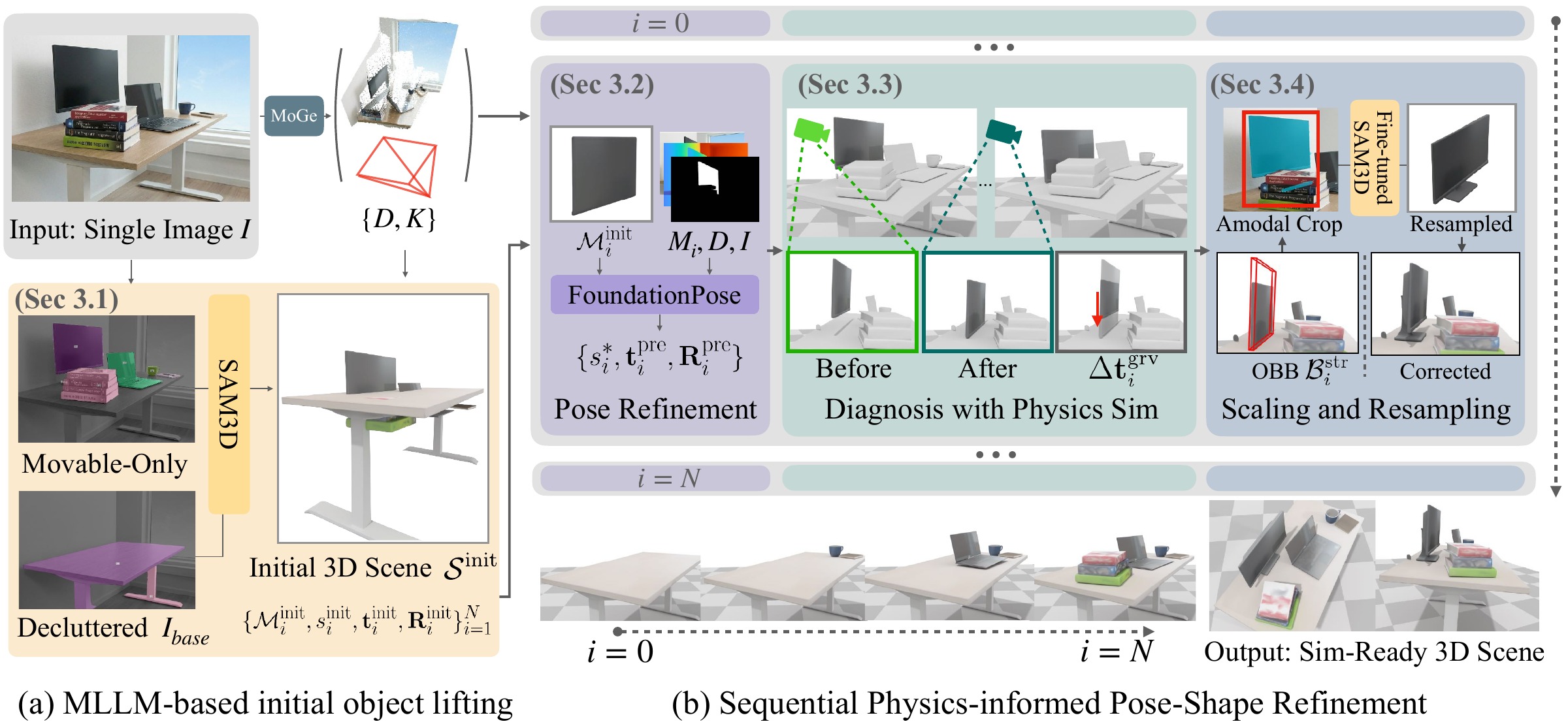

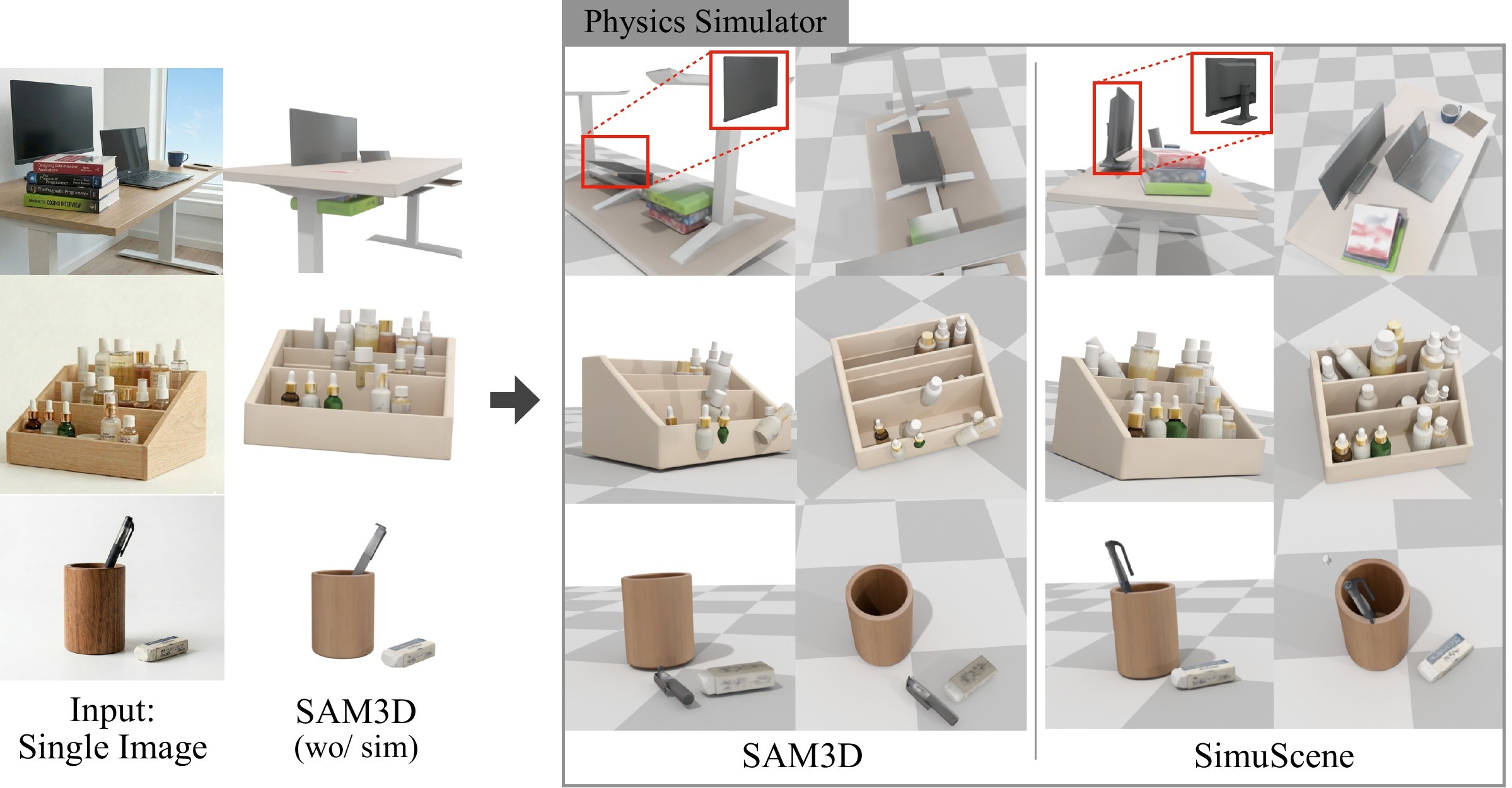

From a single input image, we decompose the scene into a base structure mesh and per-object initial meshes via foundation priors. The result is a physically plausible 3D scene directly usable in a physics simulator.
Examples
Each object enters a sequential per-object cycle of pose initialization, diagnostic physics simulation, and shape correction; the simulation acts as a diagnostic loop whose displacement signal drives the shape correction.
All scenes are visualized after gravity-driven physics simulation. Baselines collapse or stay artificially stuck mid-air, while SimuScene stays physically stable and input-aligned.
For scenes where a baseline's own walls/floor fail, we apply our plane extraction logic to recover the floor and compare every method on equal condition.
Our object-complete, simulation-ready scenes provide assets for physics-based humanoid character control, enabling dexterous human–object interaction.
Our simulation-ready, input-aligned reconstructions serve as a controllable test bed for text-guided cluttered robot-arm manipulation.
@misc{simuscene2026,
title = {SimuScene: Simulation-Ready Compositional 3D Scene Reconstruction from a Single Image},
author = {Inhee Lee and Sangwon Baik and Sungjoo Kim and Hyeonwoo Kim and Hyunsoo Cha and Hanbyul Joo},
year = {2026},
eprint = {TODO: arXiv id},
archivePrefix = {arXiv},
primaryClass = {cs.CV}
}TBU.
